Exentis Additive Screen Printing Technology enables mass production of millions of parts with micro-precise structures like never before. These structures can be incorporated into larger components with a diameter of up to 400 mm. Furthermore, nearly every material available in powder form, such as ceramics, metals, polymers, and more, can be processed into a printable paste. Think big and step boldly into the future. Exentis additive manufacturing technology is your next innovation step.
The unique Exentis Technology is based on classic screen printing and expanded into the third dimension, enabling manufacturing of complex parts. Within the process the paste is pressed through a screen onto a workpiece carrier, until the parts have reached their final height. The printing process is fully automatic with a cycle time of two to eight seconds achieving a print volume of 5,000 to 10,000 cm³ per hour, depending on the details of the part. The video shows the printing process on production system EX432i for industrial applications.
Applications manufactured with Exentis Technology
.
Electrolyzer Plates with micro precise channels
1 Electrolyser plate with...
2 ...ultra-fine channels to filter residual ammonia.
This stainless steel electrolyzer plate is part of a membrane module used in a hydrogen fuel station. Exentis Technology allows to produce the plates in one single manufacturing step. Furthermore, the technology enables the printing of extremely fine, functional channels into the part during the manufacturing process.
Added value using Exentis Technology:
One manufacturing step instead of several ones
Very fine filter channels can be realized
Manufacturing 1'050 parts in a single 24-hour shift

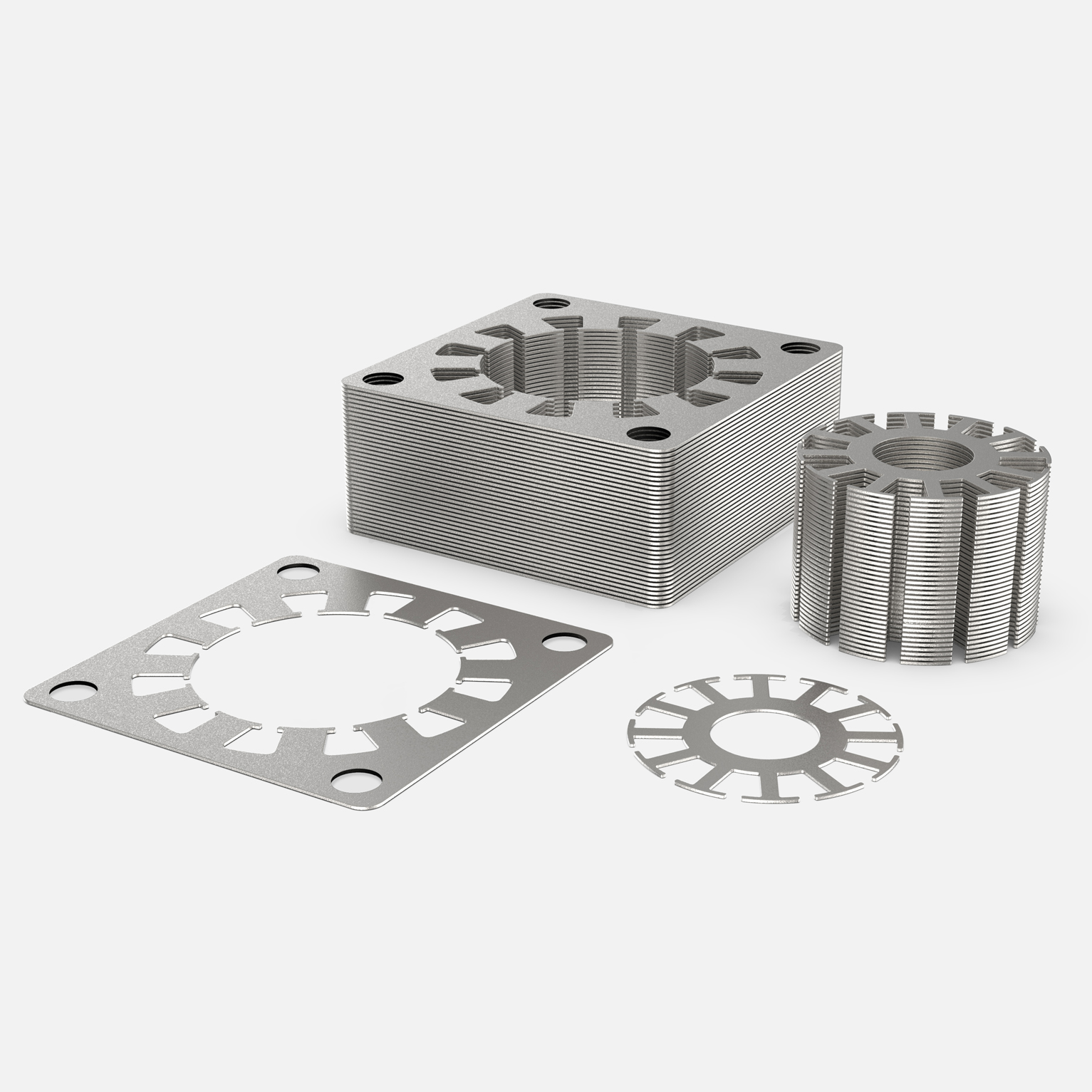

Stator and rotor sheets used in electric motors
By using Additive Screen Printing Technology, these sheets can be manufactured to two-thirds thinner than with any other traditional technology. The result: increased performance.
Added value using Exentis Technology:
Production of significantly thinner stator and rotor sheets compared to conventional technologies
Reduction of weight and volume increases the performance of electric motors
Micro filter with 211 ultra-fine channels
Traditionally, filters were stamped from woven mesh, which often led to quality issues due to fraying. Additive screen printing technology has significantly improved these parts, allowing for the creation of filters with very fine structures and eliminating fraying altogether. Combined with the capability for mass production in large quantities, provides an invaluable advantage for our customers.
Added value using Exentis Technology:
Very fine structures can be realized
No fraying: better filter properties and quality
Manufacturing high quantities up to 5 million per year
